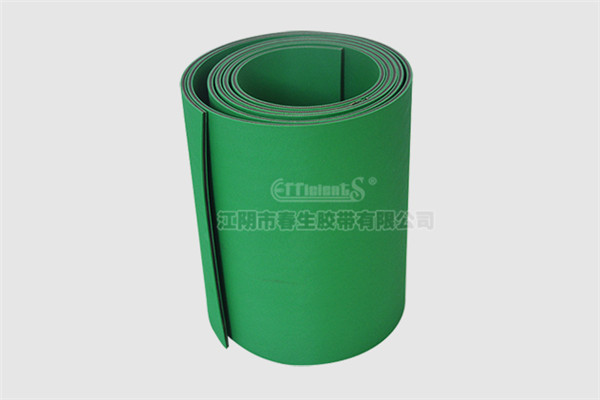

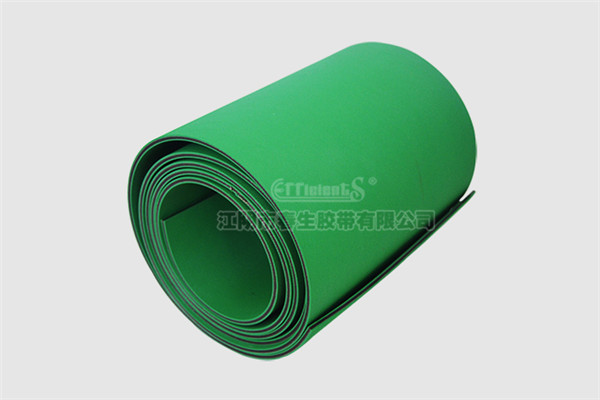

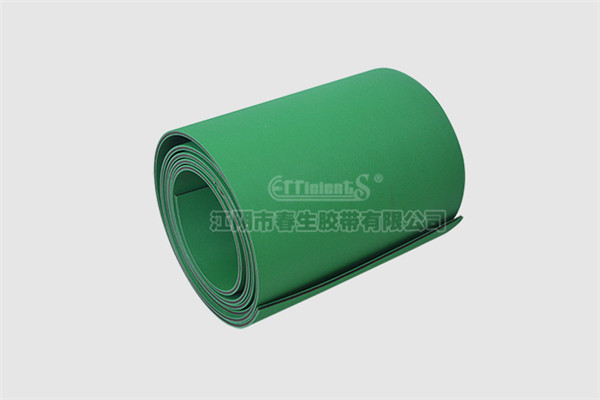

T30-05G2G2A
发布者:江阴市春生胶带有限公司         发布时间:2020-07-21



Technical Data Sheet
技术参数
Belt type
皮带型号
EfficientS BELT
T30/05G2G2A
CHUNSHENG CORPORATION
江阴市春生胶带有限公司
Main uses
主要用途
Textile
纺织行业
No.
序号
Item
项目
描述 备注
1 Specification
规格
Construction
结构

①羧基丁腈橡胶/Soft XNBR
(显著的花纹/Textured Pattern,绿色/Green)

②尼龙纤维/PA Fabric

③尼龙片基/PA Film

④羧基丁腈橡胶/Soft XNBR
(显著的花纹/Textured Pattern,绿色/Green)


抗静电性能/Antistatic 是/Yes
2 Dimensions
尺寸
宽度/Width 0 to 520 mm(可定制/Customized)
长度/Length 0 to 100,000 mm(可定制/Customized)
厚度/Thickness 3.0 mm
接头/Joint 磨接/Skived joint
3 Properties
性能
带宽抗拉强度/Bandwidth Tensile strength 200 {N/mm} 测试速度/Test speed: 50mm/min
环境条件/Ambient condition: 23'C*50%
定额有效张力/Rated effective tension 12 {N/mm}
推荐伸长/Recomended elongation 1.5-2.5%
1%的张力/Tension at 1% 5 {N/mm} 环境条件/Ambient condition: 23'C*50%
最小轮径/Minimum pulley dia. 50 {mm}
耐温范围/Temperature range -20 to +100'C {'C}
摩擦系数/Coefficient of
friction
0.6-0.7(Steel) (两面/Both Side) 测试条件/Measuring condition: 7kPa*1mm/s
环境条件/Ambient condition: 23'C*50%
重量/Mass 3.4 {kg/m2}
4 Features
产品特征
